1250 To 1600 Double Twist Bunching Machine

Short Description:

The NHF 1250 to 1600 Double Twist Bunching Machine is a leading-edge piece of equipment that is designed to produce high-quality wires and cables for a wide range of applications. Compared to the NHF 800 to 1000 equipment, the NHF 1250 to 1600 Double Twist Bunching Machine is capable of producing wires and cables with higher specifications, including specialty cables, and with larger wire and cable sizes.


Product Detail

Product Tags

China's latest 1250 To 1600 Double Twist Bunching Machine

✧ Advanced Technology

The NHF 1250 to 1600 Double Twist Bunching Machine relies on the latest in advanced technology to provide optimal performance. This machine features a sophisticated control system that delivers precise and accurate wire and cable twisting and bunching. Additionally, the machine’s advanced technology enables it to handle wires and cables of various sizes.

✧ High Performance

The NHF 1250 to 1600 Double Twist Bunching Machine is an industry-standard machine that provides high-performance wire and cable twisting and bunching. It boasts a high-speed rotation capability, which makes it possible for the machine to process wires and cables at a faster rate than other machines. The machine also features a powerful motor that provides enough torque to handle demanding cable and wire twisting and bunching operations.

Advanced High Speed Double Twist Bunching Machine
1250Double Twist Bunching Machine

✧ Multi-functional

The NHF 1250 to 1600 Double Twist Bunching Machine is a highly versatile machine that can handle different types of wires and cables. It can create twisted and bunched cables using copper, aluminum, steel, and other materials. The machine's multi-functional capabilities ensure that it can meet the demands of various wire and cable manufacturing operations across multiple industries.

✧ Reliability

The NHF 1250 to 1600 Double Twist Bunching Machine is a highly reliable machine that is designed to operate consistently and without breakdowns. It is constructed using high-quality materials and components, making it a long-lasting machine capable of providing uninterrupted wire and cable manufacturing operations.

1600 Double Twist Bunching Machine
High Voltage City Cable 1250 To 1600 Double Twist Bunching Machine

✧ Conclusion

The NHF 1250 to 1600 Double Twist Bunching Machine is the ultimate machine for manufacturing high-quality wires and cables. Its advanced technology, high-performance characteristics, multi-functional capabilities, and reliable features make it the perfect choice for various wire and cable manufacturing operations. By using the NHF 1250 to 1600 Double Twist Bunching Machine in your wire and cable production process, you can increase your capacity to produce high-quality cables according to your specifications, improve your output, and enhance your overall productivity. Get in touch with us today to learn more about our NHF 1250 to 1600 Double Twist Bunching Machine and place your order.

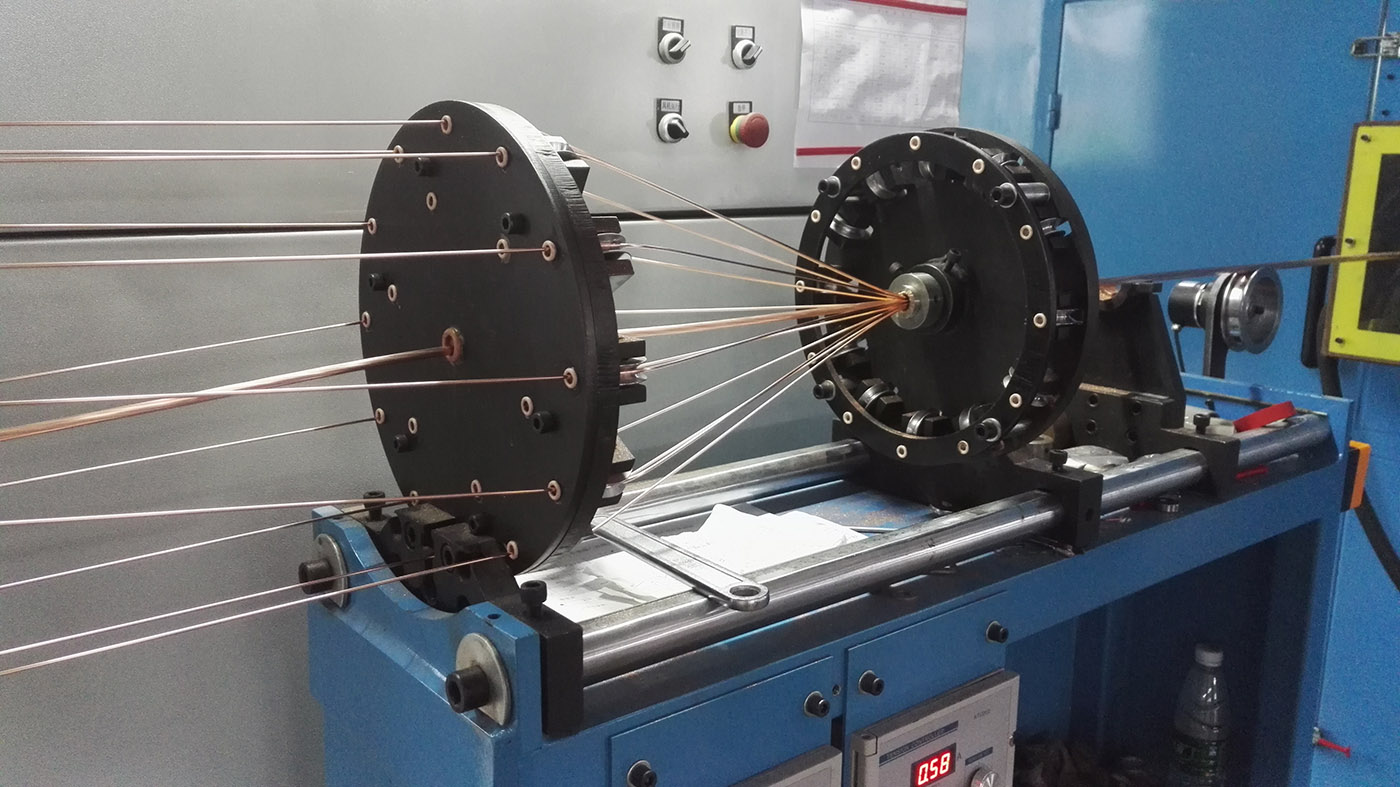

12 copper core high speed Double Twist Bunching Machine
Advanced High Speed Copper Core Double Twist Bunching Machine
Advanced High Speed Copper Core Double Twist Bunching Machine
Advanced High Speed Copper Core Double Twist Bunching Machine

Technical Specifications

Model

NHF1250(1+6)Cu compacting

NHF1250(1+6)Cu

(1+6+12)Cu compacting

(1+6+12)Cu

Take up [mm]

1250

1250

1600

1600

Drum load[kg]

4000

4000

7000

7000

Cross section [mm²]

50.max.

70.max

95.max.

120.max

Rotating speed [rpm]

800

800

500

500

Twisting speed [tpm]

1600

1600

1000

1000

Line speed[M/min]

180

180

150

150

Motor Power[KW]

85

85

150

150.0

Finished Cable [mm]

custom made

custom made

16

16

Characteristics

1. The servo motor takes up the wire, and the tension on the empty reel-full reel is stable without drifting, and the tension closed-loop system is optional;

2. With the servo motor screw rod, the thrust is strong, the disk surface is flat, and the width and spacing can be adjusted online;

3. The temperature of the main shaft is monitored, and the lubricating grease is reminded according to the running time;

4. The internal meter counts the number of meters after stranding, and the production is precise and fixed-length;

5. Automatic shutdown protection function, when the reel is full or abnormal conditions occur, it will automatically stop protection to avoid equipment damage or safety accidents;

6. Touch screen control system, easy to operate, can realize parameter setting, production monitoring, fault diagnosis and other functions;

7. High efficiency and energy saving, using frequency conversion speed regulation technology, can automatically adjust the motor speed according to production needs, reduce energy consumption and improve production efficiency.

8. Suitable for the stranding of 7-19 copper wires (Class 2)aw well as for bunching of multiple fin copper wires(class 5)

9. HMl+PLC control system for pre-setting stranding lay length.twist direction and speed synchronization.

Process

Welding

Welding

Painting

Polish

Machining

Machining

Boring Mill

Boring Mill

Assembling02

Assembling

Finished Product

Finished Product

FAQ

Q: Do you provide installation and commissioning?

A: Yes, we do the following:

-Once the customer informs us that the machine is placed in the correct position, we will send mechanical and electrical engineers to start the machine.

-No-load test: After the machine is completely installed, we first carry out the no-load test.

-Load test: Usually we can produce three different wires for load test.

Q: How do you check before delivery?

A: We will conduct dynamic balance test, levelness test, noise test, etc. In the production process.

After the completion of production, we usually carry out no-load operation on each machine before delivery. Welcome customers to visit.

Q: Can the color of the device be customized?

A: We have an international universal color card RAL color card. You just need to tell us the color number. You can customize your machine to match the color matching of your factory.

Q: Can you customize it in the main factory?

Answer: Of course, this is our purpose. According to the standards that your cable should follow and your expected productivity, we will design all the equipment, molds, accessories, personnel, inputs and required materials to make documents for you.
